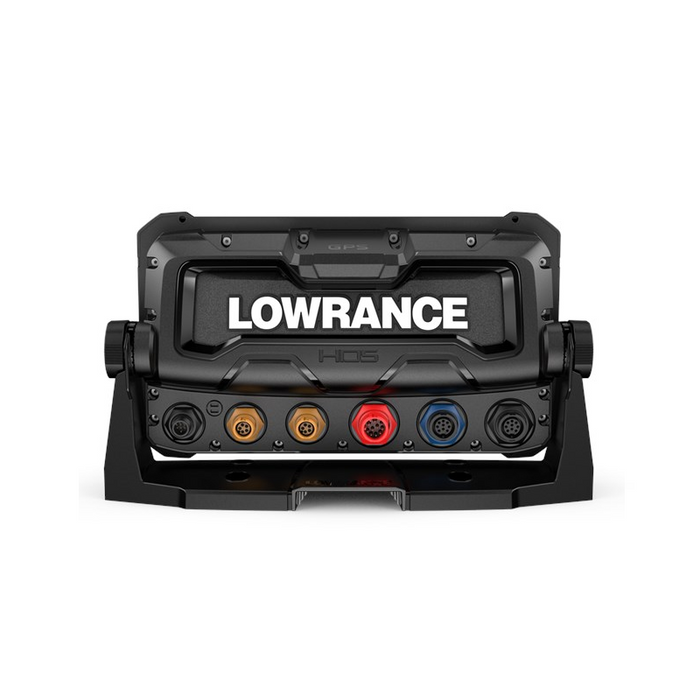

LOWRANCE HDS Pro 16 Fish Finder - ACTIVE IMAGINE 3 IN 1

LOWRANCE HDS Pro 16 Fish Finder - ACTIVE IMAGINE 3 IN 1

$6,669.00 - $6,669.00
$6,669.00
$6,669.00 - $6,669.00
$6,669.00

See more and catch more with the new HDS PRO fish finder/chart plotter. Watch fish react to your lure live with new, high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with new, ultra high-definition Active Imaging™ HD. Quickly find fishing areas with the latest and most detailed C-MAP® charts and get full fishing system networking with expanded boat control from bow to stern.

KEY FEATURES:

    • SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
    • New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
    • New! High-resolution ActiveTarget® 2 Live Sonar ready
    • FishReveal™ with new SideScan view, as well as Downscan*
    • Available in 9, 10, 12 and 16-inch display size
    • Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap
    • Real-time mapping available with C-MAP® Genesis Live.
    • Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
    • Large programmable keys for 10, 12 and 16-inch sizes
    • Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
    • NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
    • Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.

    *SidescanFishReveal requires S3100 module and a compatible transducer

    Specifications:

    Display
    Backlight Color - Pure White LED
    Display Resolution - 1920x1080
    Screen Brightness - >1200 Nits
    Viewing Angles - 80° top/bottom, 80° left/right

    Connectivity
    Bluetooth - Integrated Bluetooth 4.0 with support for Bluetooth Classic
    Ethernet Ports - 2x 100 Mbit, 6 max MFD's on a network
    Connectivity Wi-Fi - Internal 802.11b/g/n and Compatible with WiFi-1 Module
    N2K PG Ns - Receive only 65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP Voltage Transmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event Reply Transmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
    NMEA 0183 Sentences Supported - TX / RX - GPS Receive GGA GLL GSA GSV VTG ZDA Transmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - Navigation Receive RMC Transmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - Sonar Receive DBT DPT MTW VLW VHM Transmit DBT DPT MTW VLW VHMTX / RX - Compass Receive HDG HDT HDM Transmit HDGTX / RX - Wind Receive MWV MWD Transmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
    NMEA 2000 Connectivity - 1x Micro-C
    PC Connectivity - None
    SD Card Storage - 2 micro SD cards up to 32GB
    Video - Output: No Input: Composite video RCA - single channel via optional adaptor

    Cartography
    Charts supported - C-MAP Reveal C-MAP Discover C-MAP Reveal XC-MAP Discover XC-MAP (MAX N, MAX N+)C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners

    Autopilot
    Maneuvers Turn Patterns - Course Heading Waypoint Power Steer U-Turn C-Turn Spiral Zigzag Square Lazy-S
    Steering Modes - Course Heading Waypoint Power Steer
    Approvals
    Approvals Compliance - FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

    Electrical
    Power Consumption max - 4.1A @ 13VDC with Full Backlight, Sonar on
    Power Consumption min - 3.00 @ 13VDC with Full Backlight, Sonar on
    Power Consumption typical - 3.00 @ 13VDC with Full Backlight, Sonar on
    Recommended Fuse Rating - 5A
    Supply Voltage - 12 v DC (10.8-17VDC)
    Environment
    Humidity - IEC 60945 Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
    Operating Temperature Range - 5°F to 131°F (-15°C to 55°C )
    Shock Vibration - 100,000 cycles of 20 G
    Storage Temperature Range - 4°F to 140°F (-20°C to 60°C )
    Waterproof rating - IPX7 with card door closed

    GPS
    Correction - DGPS, WAAS
    GPS Receiver Channels - 16
    Position Accuracy - 20m RMS
    Time to First Fix - 30s
    Update Rate - 10Hz

    MFD
    AIS - AIS Chart overlay. Target vessel details.
    Autopilot - Outboard Pilot Ghost Trolling Motor Recon Trolling motor (software dependent) Motor Guide Xi5/Xi3 Trolling Motor **requires Motor guide Pin Point Gateway
    Cartography included - C-MAP Discover On Board (AMER models) C-MAP World Background (ROW models) Navionics base map (AMER and ROW models)
    Digital Switching - Czone Naviop
    GPS - 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
    Internal Storage - 8.0 GB Internal
    Multimedia - Sonic Hub Sonic Hub 2 Fusion Link products any NMEA 2000 compliant Marine Audio products
    Sonar Compatibility -Integrated: CHIRP Broad band Active Imaging Down Scan Active Imaging Side Scan Active Imaging HD Down Scan Active Imaging HD Side Scan Compatible with: Active Target Active Target2 S3100 Sonar Hub Structure Scan Structure Scan HD Structure Scan 3D Live Sight (requires PSI-1 module)
    Waypoints, Routes, Tracks - 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
    Weather - SiriusXM via WM-3 (USA only) SiriusXM via WM-4 (USA only)

    Physical
    Compass Safe - 65 cm (2.1 ft)
    Dimensions W x H x D - 16.95" (430.5 mm) x 10.20" (259.2 mm) x 3.46 (87.8 mm)
    Mounting Type - Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
    Weight - 7.94 lb (3.60 kg)

    Other
    Interface - Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light2 - User Programmable Quick Access Keys
    Languages - Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
    Warranty Period - 2 Year + 3 additional years of upgrade options Totaling 5 years
