GARMIN Echomap UHD2 7CV Chartplotters
OVERVIEW:
They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5”and 7” chartplotters with clear, crisp sonar and mapping.
75cv with GT20-TM Transducer and Garmin Navionics+ Canada & Alaska Mapping
7" Keyed Interface, Ultra High-Def Clearvu and Traditional Chirp Sonar, Garmin Navionics+ Charts and Maps, with included Transducer.
FEATURES:
- The bright 7” keyed display is made for convenience.

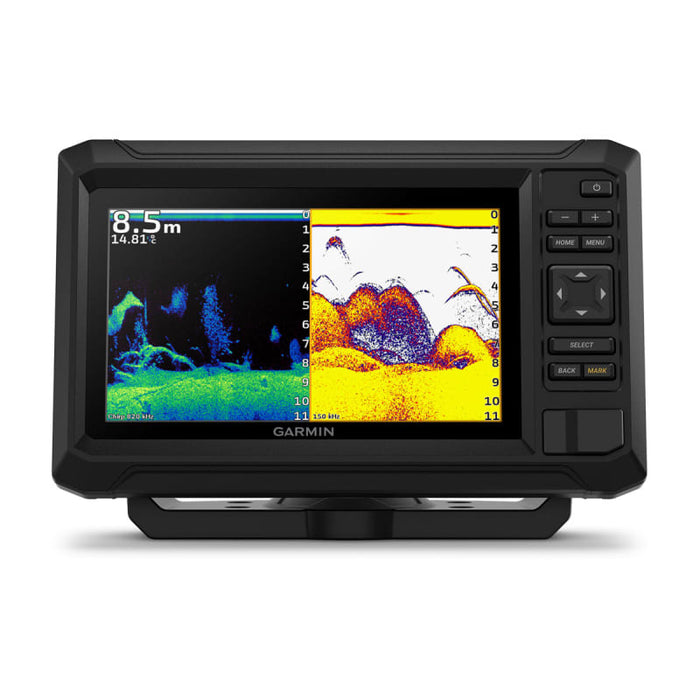

- Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars.
- What’s under the water looks even better with high-contrast vivid color palettes.
- Wi-Fi® connectivity2 between compatible chartplotters makes it easy to share info.
- Enjoy No. 1 in mapping3 with our LakeVü g3 and BlueChart® maps with Navionics® data.
SPECIFICS:
- SONAR SUPPORT
-

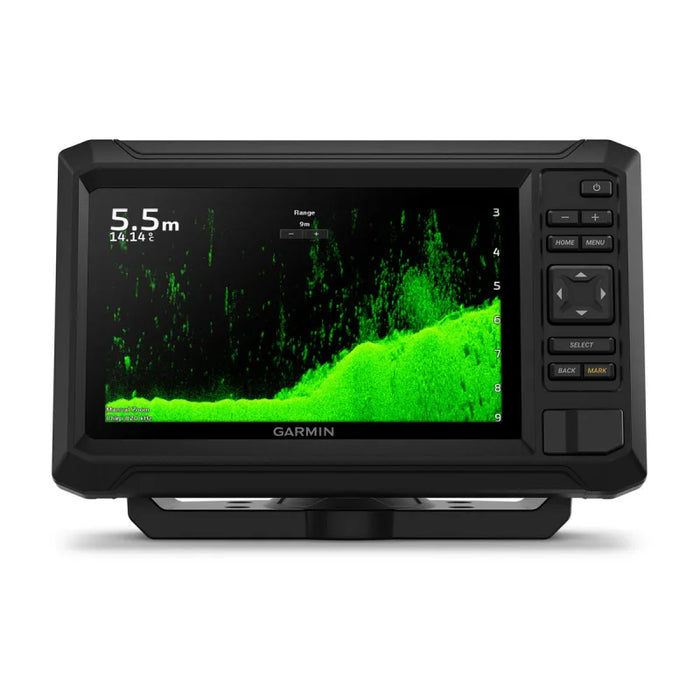

With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.
-
- VIVID COLOR PALETTES
-
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
-
- BUNDLE YOUR TRANSDUCER
-
Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
-
- PRELOADED CHARTS
- Know the waters you're in as if you grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping which includes a 1-year subscription for downloadable daily updates and more.
- WIRELESS NETWORKING
- If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints and routes — with them.
- ACTIVECAPTAIN® APP
- Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data and more2.
- Warranty
-
In The Box
- ECHOMAP UHD2 (device varies depending on selection)
- GT20-TM transducer
- Power/data cable

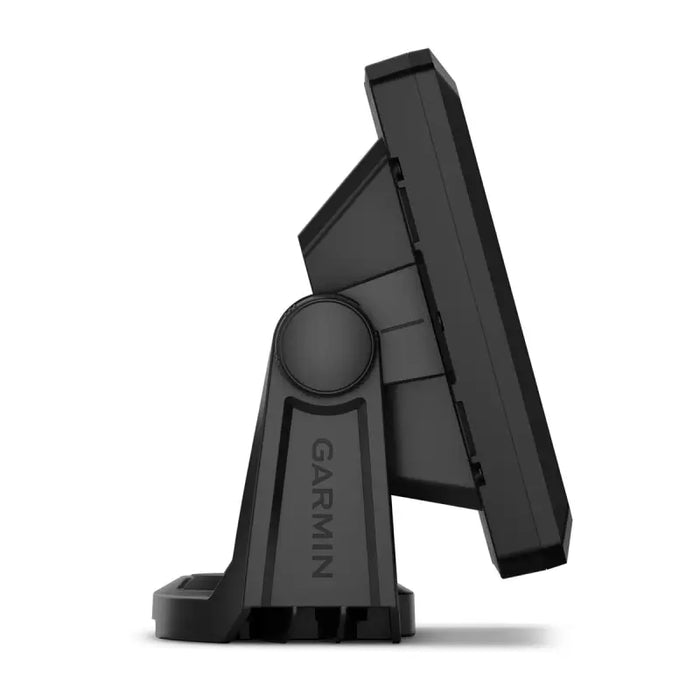

- Tilt mount
- Flush mount
- Hardware
- Documentation
SPECS:
| Dimension | 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm) |
|---|---|
| Weight |
1.5 lbs (0.7 kg) |
| Water rating |
IPX7 |
| Display Type | WVGA, TN |
| Display Size | 6.1" x 3.4" (15.5 x 8.7 cm) |
| Display Resolution | 800 x 480 pixels |
| Mounting Options | Bail or flush |
| Input | Keyed |
Maps & Memory |
|
| Accepts Data Cards |
1 microSD™ card; 32 GB maximum size |
|---|---|
| Waypoints |
5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | |
|---|---|
| Galileo | |
| Has built-in receiver | |
| Receiver |
5 Hz |
| Supports WAAS | |
Built-in Maps |
|
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
|---|---|
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Garmin Navionics+ (Coastal) | yes (see Additional) |
| Garmin Navionics+ (Inland) | yes (see Additional) |
| Tide tables | yes (see Additional) |
Optional Map Support |
|
| BlueChart g3 | |
|---|---|
| BlueChart g3 Vision | |
| LakeVü g3 | |
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
Chartplotter Features |
|
| ActiveCaptain® compatible | |
|---|---|
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 1.0 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18W |
Sonar Features |
|
| Displays sonar | |
|---|---|
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
Networking & Connections |
|

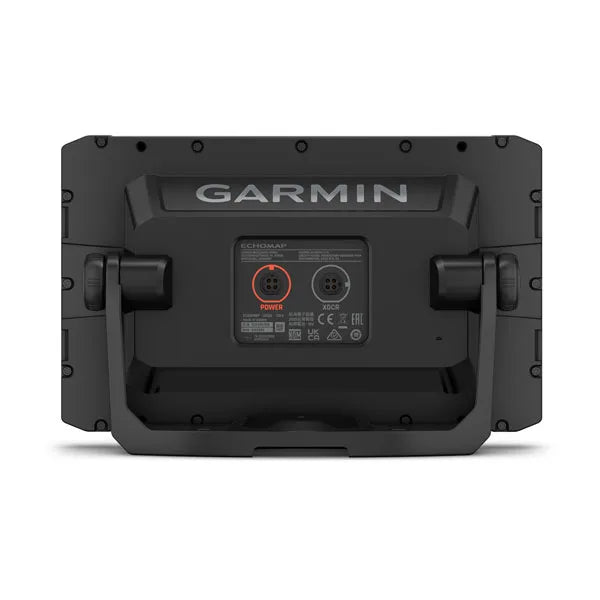

| 4-pin transducer ports | 1 |
|---|---|
| Garmin Wi-Fi network (local connection) | |
Additional |
|
| Additional |
|
|---|---|
