GARMIN Echomap Ultra 2 10" Chotplotters
Original price
$2,759.99
-
Original price
$2,759.99
Original price
$2,759.99
$2,759.99
-
$2,759.99
Current price
$2,759.99
OVERVIEW:

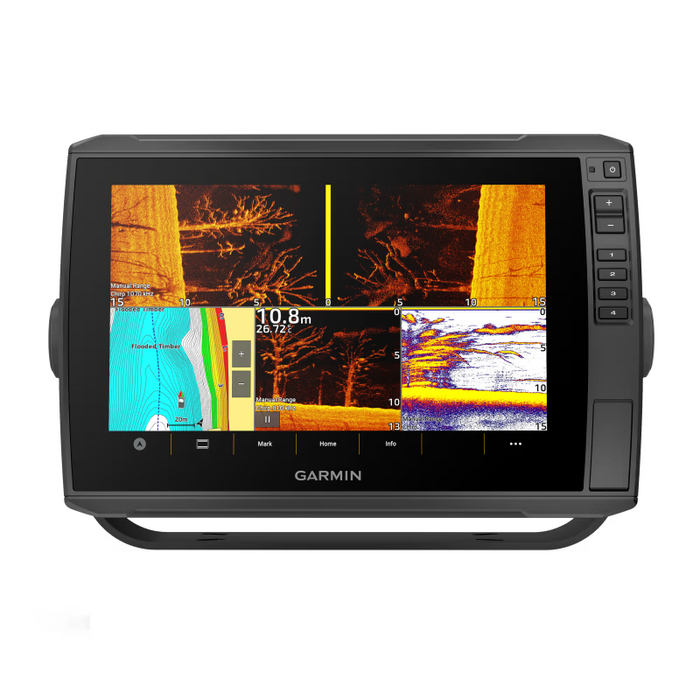

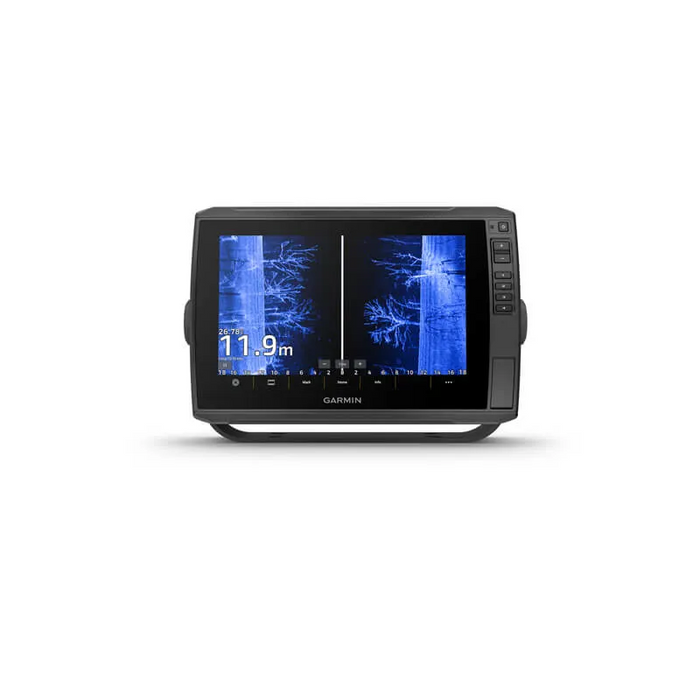

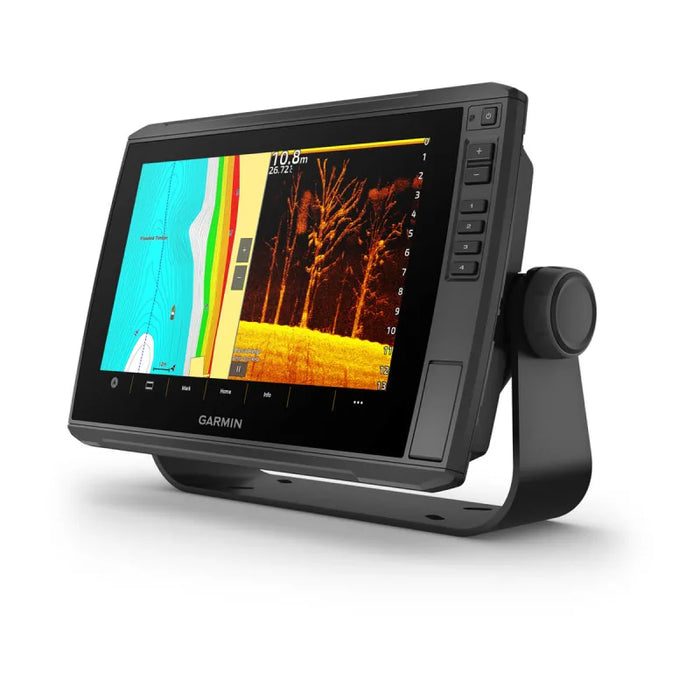

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
10" Display size, Worldwide Basemap Chart and Maps, Transducer not included.
102sv without Transducer
FEATURES:
- 10” OR 12” TOUCHSCREENS
- SUPPORTS LIVESCOPE™ SONAR1 AND MORE
- AVAILABLE WITH BUILT-IN GARMIN NAVIONICS+ MAPPING
- WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2
- CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES
- MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY
SPECIFICS:
- LIVESCOPE™ SONAR SUPPORT
- The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
- BUILT-IN UHD SONAR
- Select models are bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
- VIVID COLOR PALETTES
- High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
- PRELOADED CHARTS
- Experience unparalleled coverage and detail. Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more.
- PREMIUM MAP UPGRADES
- Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.
- WIRELESS NETWORKING
- If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.
- In The Box
-
- ECHOMAP Ultra 102sv or 106sv (depending on the version selected) with optional Garmin Navionics+
- Power cable

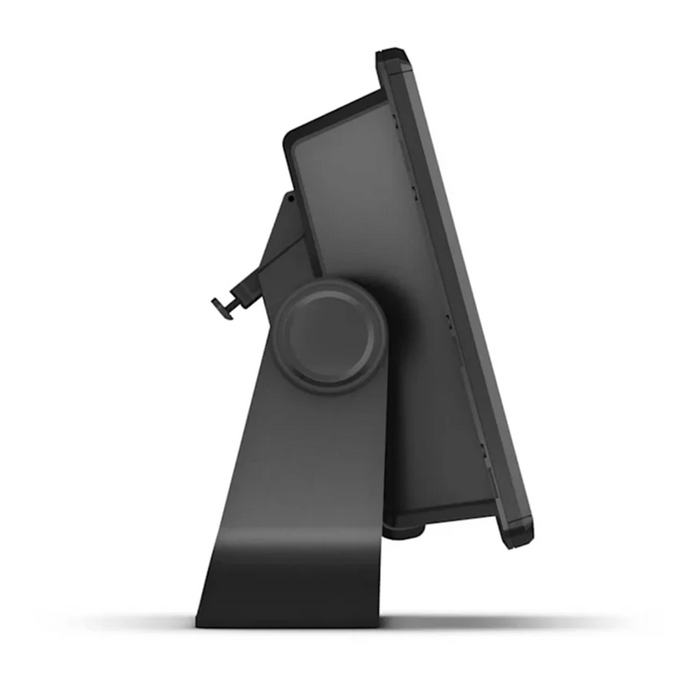

- Bail mount with quick release cradle
- Protective sun cover
- 8-pin transducer to 12-pin sounder adapter cable
- Hardware
- Documentation
SPECS:
| Dimension | 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) |
|---|---|
| Weight |
4.0 lbs (1.8 kg) |
| Water rating |
IPX7 |
| Touchscreen | YES |
| Display Type | WXGA, IPS |
| Display Size | 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) |
| Display Resolution | 1280 x 800 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with keyed assist |
Maps & Memory |
|
| Accepts Data Cards |
2 microSD cards |
|---|---|
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | YES |
|---|---|
| GLONASS | YES |
| Galileo | YES |
| BeiDou | YES |
| Has built-in receiver | YES |
| Receiver |
10 Hz |
| NMEA 2000 Compatible | YES |
| Supports WAAS | YES |
| Supports multi-band, multi-constellation GPS | YES |
Optional Map Support |
|
| BlueChart g3 | YES |
|---|---|
| BlueChart g3 Vision | YES |
| Garmin Navionics+™ | YES |
| Garmin Navionics Vision+™ | YES |
| TOPO 100K | YES |
| Standard Mapping | YES |
| Garmin Quickdraw Contours | YES |
Chartplotter Features |
|
| AIS | YES |
|---|---|
| DSC | YES |
| Supports Fusion-Link™ compatible radios | YES |
| ActiveCaptain® compatible |
YES |
| Sailing Features | YES |
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 2.3 A |
| Maximum current draw at 12 Vdc | 5.0 A |
| Maximum power usage at 10 Vdc | 34 W |
Sonar Features |
|
| Displays sonar | YES |
|---|---|
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | YES |
| LiveScope | YES |

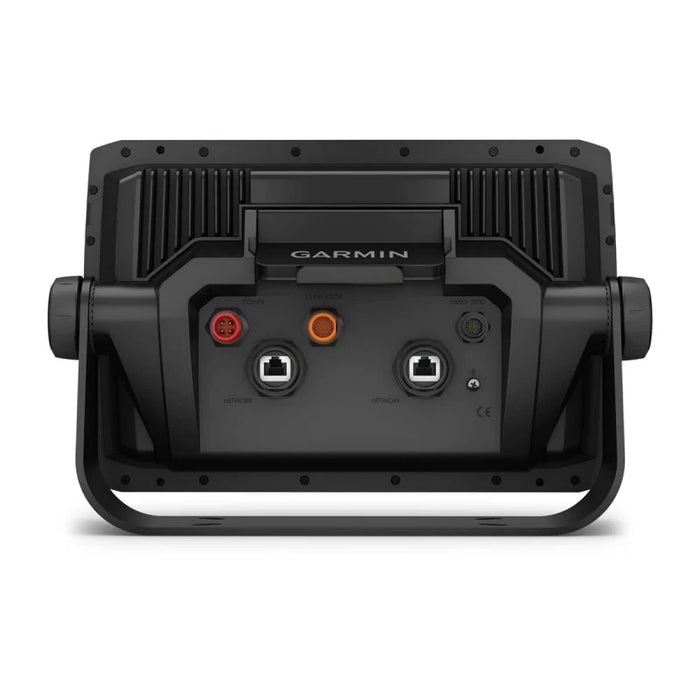

Networking & Connections |
|
| NMEA 2000® ports | 1 |
|---|---|
| Garmin Marine Network Ports |
2 (large connector) |
| 12-pin transducer ports | 12-pin scanning sonar |
| ANT® (Connectivity) | YES |
| Garmin Wi-Fi network (local connection) | YES |
SKU 010-02879-00
