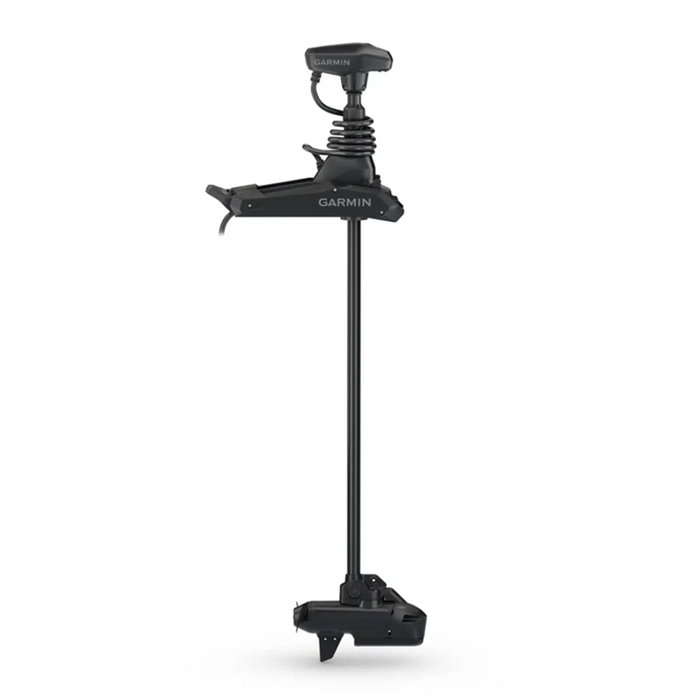

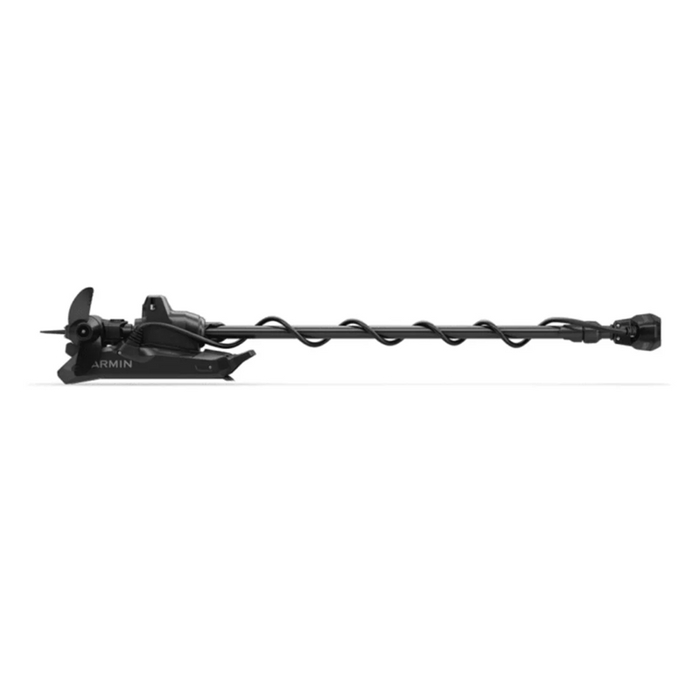

GARMIN Force® Kraken Black Trolling Motor

GARMIN Force® Kraken Black Trolling Motor

$5,659.99 - $5,659.99
$5,659.99
$5,659.99 - $5,659.99
$5,659.99

The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.

FEATURES:

  • WHAT YOU'LL LOVE
    • HIGH POWERED
      • Force Kraken provides legendary power and performance with 100 lbs of thrust1.
    • POWER THAT LASTS
      • Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.
    • WHISPER QUIET
      • Don’t spook the fish; the motor is extremely quiet above and below the water.
    • PURPOSE-BUILT DESIGN
      • This trolling motor is optimized to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design.
    • DESIGNED TO ENDURE
      • The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.
    • PERFECT FOR DEEP V HULLS
      • Get easy installation where bow space is limited, thanks to the pivot-style mount. The multiple shaft lengths accommodate many different boat sizes and deck configurations.
  • TOTAL CONTROL
    • STAY PUT
      • The anchor lock provides our most precise boat positioning technology to help keep the boat in one place.
    • FLOATING REMOTE
      • Use the included remote to help you navigate from anywhere in the boat with our simple point -and-go technology.
    • SMARTWATCH INTEGRATION
      • Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.
    • WIRELESS INTEGRATION
  • SONAR
    • INCLUDED SONAR
    • ULTRA HIGH-DEFINITION SONAR PICTURE
      • The brushless motor allows for clear sonar returns with extremely low levels of unwanted noise.
    • LIVESCOPE CABLE MANAGEMENT
      • Keep your LiveScope sonar cable protected by running the transducer cable through the trolling motor shaft (accessory purchase required).

In The Box:

  • Force® Kraken Trolling Motor
  • GT56UHD-TR transducer
  • Remote
  • High efficiency propeller
  • Assembly and mounting hardware
  • Documentation

SPECS:

Warranty 3-year, limited lifetime on shaft
Color black
For use in freshwater, brackish water and saltwater
Mount style pivot-style mount
Max thrust 100 lbs per ISO 13342 using high efficiency propeller at 36 V
80 lbs per ISO 13342 using high efficiency propeller at 24 V
Voltage 24 V or 36 V
Electric steering
Built-in heading sensor
Built-in GPS yes (dual frequency GPS)
Water rating IPX7
Mounting location bow
Wireless remote yes (included)
Foot pedal compatible
Battery indicator
Variable speed control yes (20 steps)
Lighted direction indicator
quatix remote control supported
Manual reverse control

Sonar Features
Frequencies supported Traditional: High-wide CHIRP (150-240 kHz)
ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
Transmit power Traditional: 350 W
ClearVü/SideVü: 500 W
Maximum depth CHIRP sonar: 800 ft freshwater
ClearVü: 400 ft; SideVü: 500 ft
Depth/speed/temperature depth and temperature
Number of pins 12-pin (orange connector)
LiveScope cable integration yes (LiveScope transducer and Kraken Mounting Bracket purchases required)

Autopilot Features
Route following
Anchor lock
Smart Anchor Lock features
Anchor lock jog
Heading hold
Cruise control
Gesture features yes (manual+, heading hold+, jog+)

Remote Features
Display size 1.2" (30.2 mm) diameter
Display resolution 240 x 240 pixels
Display type color, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter user-programmable keys
Autopilot feature control
Water rating IPX7
Battery life typical use with backlight at low, 43 weeks
Floats
SKU 010-02573-10
