HUMMINBIRD Ice Xplore + Mega Live 2 Bundle

Original price $3,999.99 - Original price $4,799.99
Original price
$3,999.99
$3,999.99 - $4,799.99
Current price $3,999.99

OVERVIEW:

Take your ice fishing to the next level with the ICE XPLORE + MEGA Live 2 Bundle delivering next-gen clarity, helping anglers catch more fish and enjoy every moment on the ice. Built for hardwater, this bundle delivers unmatched clarity, precision, and control beneath the ice. The XPLORE Series fish finder combines a vivid touchscreen display with intuitive mapping and sonar features, while the MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail. Outfitted with right-sized, cold-weather-ready cables and accessories tailored for ice fishing, this bundle is ready to hit the ice when you are. Note: third-party ice shuttle and pole required for setup.

FEATURES:

      • Next-Gen Clarity
      • XPLORE Series and MEGA Live 2 deliver ultra-detailed views in real-time, making it easier to find and stay on fish.
      • Designed for Ice
      • Includes ice-specific cable lengths, inline fuses and connectors for hassle-free setup and reliability in cold conditions.
      • Ice Mode
      • Streamlined features and functionality, for a custom ice experience. Flip back to Open Water Mode when it’s time to move your XPLORE and MEGA Live 2 to your boat.
      • Real-Time MEGA Live 2 Sonar

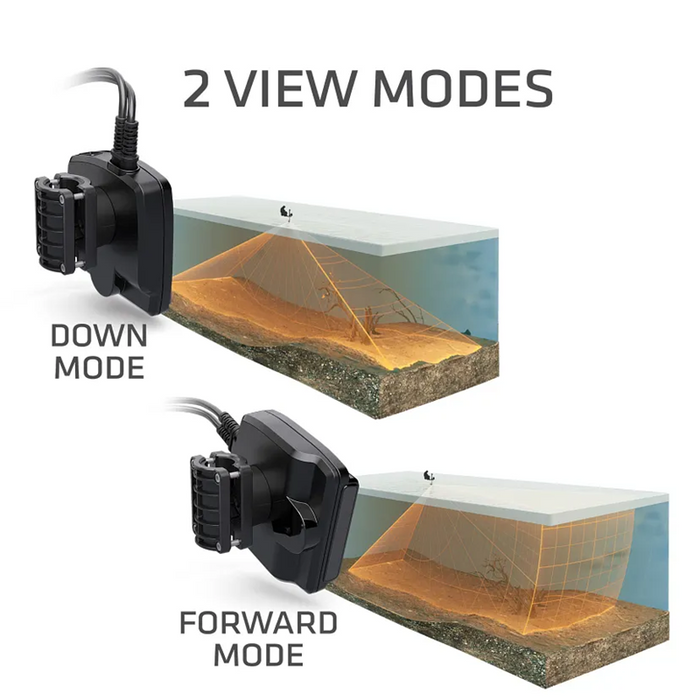

      • Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom.
      • Lakemaster Mapping Included
      • Ice XPLORE fish finders come with LakeMaster® mapping with features like SmartStrike® to keep you on the fish.
      • Custom Bundle
      • Pre-matched components streamline compatibility and installation, ready for your choice of ice shuttle and pole for full on-ice functionality.
      • Warranty
      • Ice XPLORE includes a 2-year limited warranty (Additional third year of warranty is available with product registration). MEGA Live 2 is covered by a 2-year warranty.
      • 2D Flasher Modes
      • XPLORE units now support advanced 2D flasher modes for enhanced vertical jigging and ice fishing visibility. (Requires XI 14 transducer).
      • Included Components

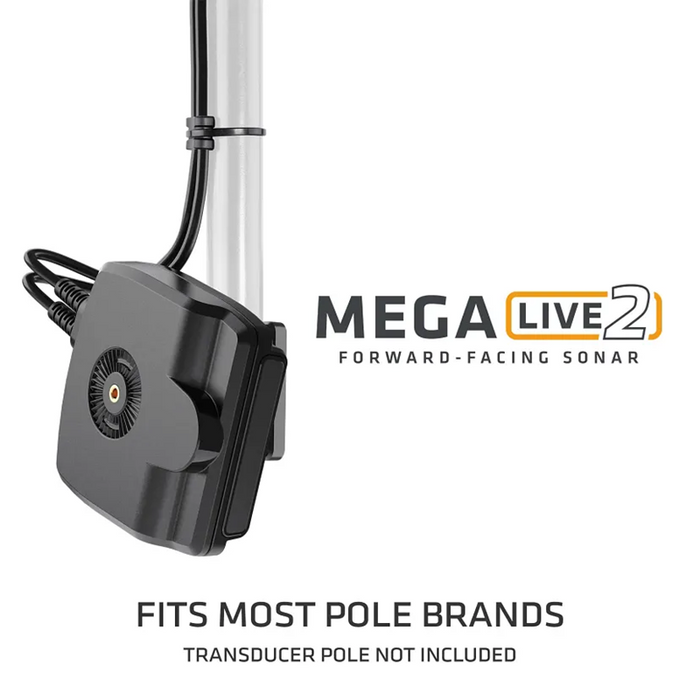

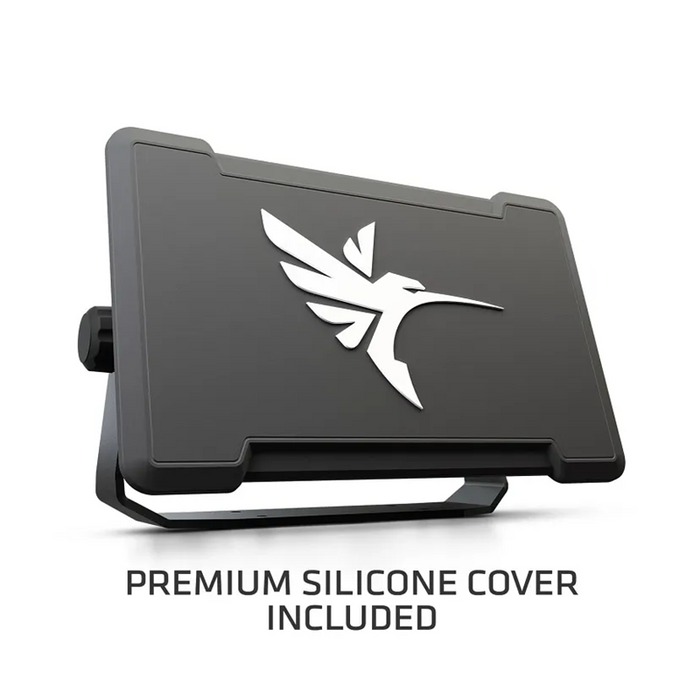

      • XPLORE fish finder; 18” Power cable with spade connectors and inline fuse; Premium Silicone cover; Gimbal bracket; XPLORE Map Card; MEGA Live 2 Transducer; Compact Pole-mount; 5' Ethernet Cable; 4' Power cable with spade connectors and inline fuse

      SPECS:

      • 9"
        • Display Size Diagonal - 10.1"
        • Length - 6.26"
        • Height - 11.69"
        • Width - 3.3"
        • Weight - 4 lbs 4.48 oz
        • Display Pixel Matrix - 1280 x 720
      • 10"
        • Display Size Diagonal - 10.1"
        • Length - 7.25"
        • Height - 12.1"
        • Width - 3.3"
        • Weight - 4 lbs 12 oz
        • Display Pixel Matrix - 1280 x 720
      Transducer Included MEGA Live Imaging
      Compatible With Minn Kota US2 Sonar, Minn Kota i-Pilot Link, NMEA 2000, Radar, One-Boat Network, MEGA Live 2
      Features Touch Screen, MEGA Live Imaging, Networking, Built In GPS, All Season, Bluetooth, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi
      Memory Card Slot Dual Micro SD
      Sonar-Standard MEGA Side Imaging+, MEGA Down Imaging, MEGA Side Imaging, MEGA Down Imaging+
      Sonar-Coverage 20°, 42°, 60° & (2) 86° @ -10dB
      Sonar-Optional 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
      Live Sonar-Coverage 20 degrees x 120 degrees
      CHIRP - Frequencies Supported Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
      Sonar-Frequencies Supported 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
      Depth-Sonar 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
      CHIRP - Imaging Frequencies Supported 455 kHz SI+ (405-505 kHz), 455 kHz DI+ (420-520 kHz), Compact MEGA SI+ (1100-1200 kHz)
      Depth-Down Imaging 200 ft (MEGA), 400 ft (455 kHz)
      Range-Side Imaging (Side-To-Side) 800 ft (455 kHz), 400 ft (MEGA)
      Interface Touch Screen, Keypad Control (Cross Touch®)
      Power Draw 2.2 Amps
      Power Input 10.8-20 VDC
      Power Output Peak-to-Peak 8000 Watts
      Power Output RMS 1000 Watts
      Screen Snap Shot Included
      Sonar Recording Included
      Mount-Standard Gimbal
      Mount-Optional In-Dash Mounting Kit
      Mount-Optional Size

      11.690 in W x 6.569 in H x 3.884 in D

      12.098 in W x 7.702 in H x 3.891 in D

      Transducer Mount Location Portable
      GPS Chartplotting Included
      GPS Receiver Internal
      GPS Trackplotting Included
      Waypoints, Routes, Tracks/Points 10,000, 50, 50/20,000
      360 Imaging Compatibility Yes
      MEGA Live Compatibility Yes
      Humminbird Basemap Included
      LakeMaster Compatibility Yes
      CoastMaster Compatibility Yes
      Navionics Gold/HotMaps Compatibility Yes
      Navionics Platinum+ Compatibility Yes
      Platinum Compatibility Yes
      Minn Kota Advanced GPS Navigation Compatibility Yes
      Minn Kota i-Pilot Link Compatibility Yes
      Minn Kota Talon Shallow Water Anchor Compatibility Yes
      Radar Compatibility Yes
      5-Port Ethernet Switch Compatibility Yes
      AIS Compatibility Optional
      Autopilot Compatibility No
      Heading Sensor GPS Compatibility No
      Heading Sensor GPS (NMEA 2000) Compatibility Yes
      NMEA2000 Included
      Target Separation 2.5 in
      Upgradable Software Yes
      View Preset Keys Yes
      X-Press Menu System Yes
      Custom Digital Readout Yes
      Custom View Selections Yes
      Display Colors Grayscale 24-Bit
      Display Type Color TFT
      Speed Included
      Temperature Built In
      Temperature Alarm Yes
      Temperature Graph Yes
      HDMI Compatible No
      Warranty XPLORE: Three-Year Warranty with Registration, MEGA Live 2: Two-Year Warranty
      SKU 412340-1
      SIZE: 9"
